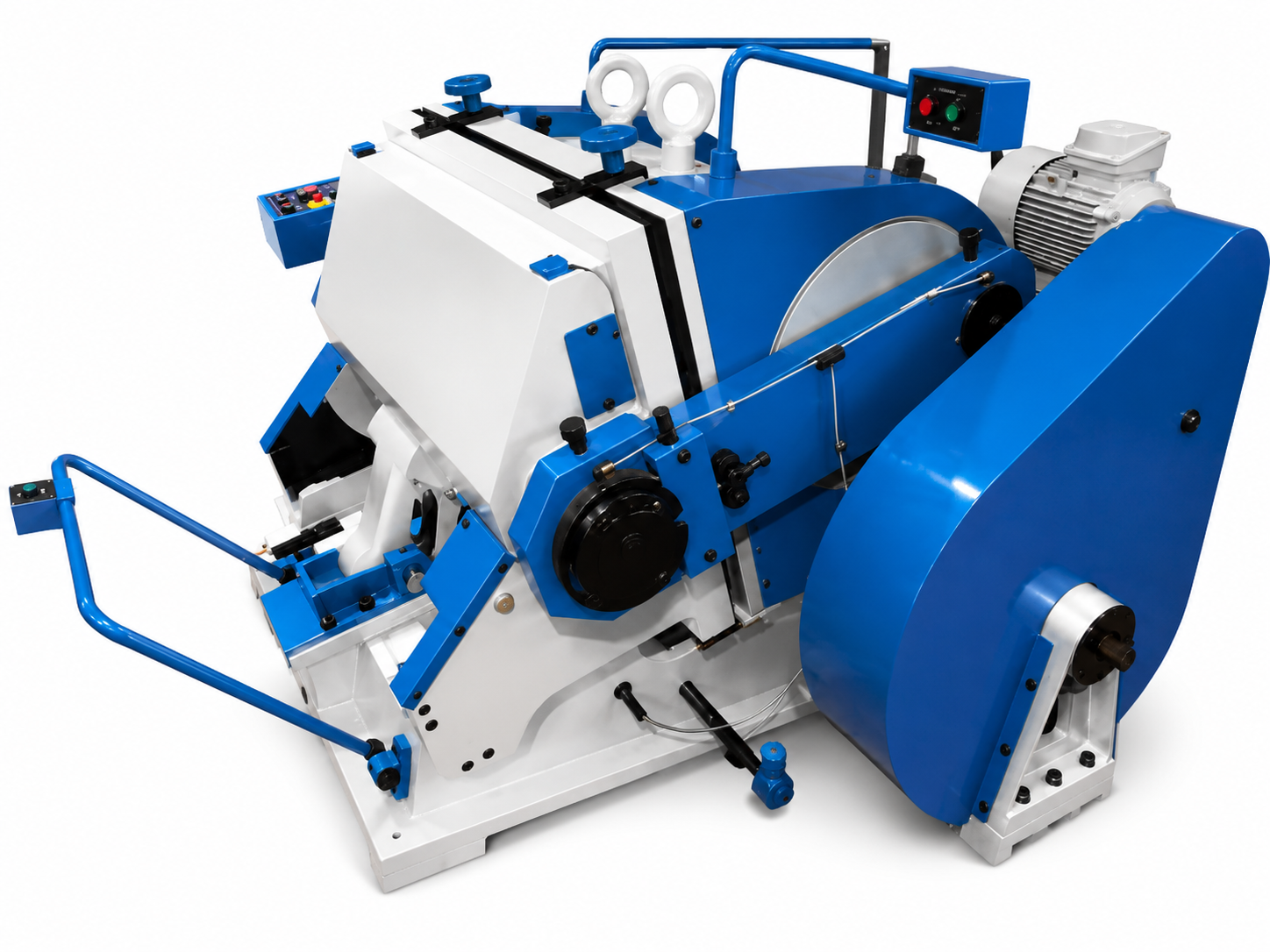

Die Punching & Creasing Machine
Technical Data
Die Punching & Creasing Machine
Features
- Electromagnetic clutch-brake with instant stop
- Dwell timing and operator safety device
- Sheet counter and digital electronic counter
- Piped oiling system with high-quality bearings and bronze bushes
- Helical gears; automatic time delay 0–30 sec.
- Smooth operation with chromium-finished components
- Worm-gear feed system
Available Sizes
20" × 26" · 22" × 32" · 25" × 37" · 29" × 40" · 33" × 43" · 41" × 53" · 41" × 55" · 42" × 62" · 48" × 68" · 52" × 72"
| Platen Size | 25"x35" to 56"x76" |
|---|---|
| Drive System | Electromagnetic Clutch & Brake |
| Safety System | Safety Touch Bar & Emergency Stop |
Description
Advanced Printing & Packaging Machineries Die Punching & Creasing Machine is engineered for precision cutting, creasing, and embossing of corrugated boards, carton boxes, and heavy paper stock.
Designed with high-tensile cast body frame, precision gear drive, electromagnetic clutch, and safety touch bar for operator protection and maximum production speed.
